Try ProSteel 7 now!
If you design steel structures using BS5950, our ProSteel software could save you time and money! Download the demo and check it out for yourself.
The key limitations of this demo version are that printing is disabled and it only considers steel sections with a mass of 50kg/m or less - virtually everything else is identical to the full version.
ProSteel runs on Windows 7/8/10 systems. Windows XP and Vista are no longer supported.
Click here to download the demo (approx 9MB) - download updated 14 June 2021
If you get a 'Windows Defender SmartScreen prevented an unrecognized app from starting' message, click on 'More info' and select 'Run anyway'. In a laudable effort to protect you, Windows does this when an attempt is made to run an unknown application which this demo setup file is, being newly uploaded
The full version of ProSteel comes with a 101 page printed manual also available separately from Lulu.com, £6.95+P&P.
If you are downloading the demo you may find it helpful to print this page out. In conjunction with the on-line help it should be enough to give you all the information you need to get started.
If you've already bought ProSteel and are looking for the latest version, don't download this demo: Use the 'Check for updates' option within your currently installed copy or contact us for a personalised full version download link.
Clicking on the link or button above will either run the installation program immediately or will let you download it to your computer from where you can run it. The filename is ProSteel-Demo-Setup.exe.

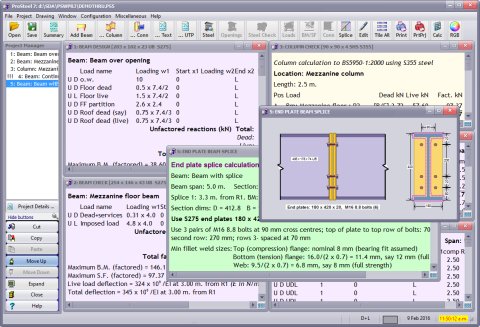

Once you have installed the program, start it (Start Menu, Programs, Greentram, ProSteel 7). Click on 'OK' to clear the disclaimer screen. The display should look something like the one shown above.
A ProSteel project consists of one or more 'items'. An 'item' is a beam, steel column, steel beam/beam or beam/column connection, text page or OLE page. You can add items to your project by using the toolbar buttons or from the Project menu. You can edit items by double clicking on the window, clicking on the pen icon on the toolbar, selecting 'Edit' from the menu or by pressing Alt+E - one of these should suit your preferred way of working.
Starting a new project
To start a new project, select File, New. The Project details dialog will be displayed; this lets you enter data in four fields as with our other programs. You can also choose whether windows of any particular type are minimized when you 'close' them or whether they are closed. The latter makes for a clearer desktop on larger projects; the former saves time when dealing with something like a through room beam, as you don't have to keep reopening windows. Once you have entered the required information (you can go back and change it later if necessary) you will be prompted for a file name under which your work will be saved.
To add a beam to your project, click on the Add Beam icon or select the Project, Add Beam option. The beam edit dialog, shown next, will be displayed.
The ProSteel 7 beam edit dialog is arranged as a five page notebook. Clicking on the 'Apply' button commits any changes that you make without closing the dialog, and you see the updated calculations in the corresponding window. 'Undo' restores the data to what it was before you started editing or last pressed 'Apply'.
On the first page you enter something to identify the beam, the span, the beam type, whether you want to print one or both diagrams (ignored in the demo version) and you then enter the loads on the beam in the table below.
The column headed 'T' defines the load type: 'U' for a load which is uniformly distributed between the beam reactions; 'R' for a part UDL - you enter the loading and start and end positions (measured in metres from R1); 'V' for a variable or triangular load - you enter the start load and position and end load and position (each in kN/m run and m. from R1); and, lastly, 'P' for a point load, entered in kN, position in m. from R1. In the second column enter, 'D' or 'L' for dead or live. In the 'Desc' column enter something to identify the load and then enter the loads and positions as appropriate. When you have entered the loads click on 'Apply'. The calculation window will be updated.
Click on the Steel tab and you will see a display like the one above. Make any changes, then 'Apply' again. The required size will be shown on the button immediately under 'Consider' (see below) - you can click on the button to manually choose an alternative section, if you don't want the one that the program has selected. Then click on the 'Bearings' tab and change the bearing details as necessary. Click once more on 'Apply' then close the dialog and you're done.
The next two pages of the dialog let you enter bearing details and check openings in the beam web.
The last page of the dialog, shown above, lets you enter the position(s) of any beam splices: ProSteel will check bolted flange plate and welded end plate splices. If there are two splices, both must be identical.
Column design and checking
If you've grasped how beam design is tackled, you will have no problems with columns - the concepts are identical.
ProSteel's column design dialog has three pages, one each for loads, steel design parameters and base plate sizing. If you choose the cap connection or beam reactions options, ProSteel automatically calculates the moment resulting from the applied load.
You will only be able to add connections to your project once you have added at least one beam and one column or two beams. The connection edit dialog is split across two pages; the first (shown here) lets you select which members are connected, the second details of the connector, bolt size and bolt spacing.
Uninstall via Control Panel, Add/Remove Programs. You do not need to uninstall the demo before installing the full version.
Use of our programs is subject to our end user licence agreement.
Ordering the full version
The full version of ProSteel 7 lets you print out your calculations and, of course, the on-screen windows do not have the 'Demo' stamp across them. It comes with a printed manual and the price includes updates issued during the next 12 months.
EOFY21 Sale: First time user online purchases only. The end of the Australian financial year is nigh. Save 21% on a single user SuperBeam, ProSteel or EuroBeam licence if you order before the end of June 2021. This offer will not be extended.
Single user copy
£200.00£158.00 + VAT BUY NOW
Additional user licence and manual £100.00 + VAT Existing users only
Unlimited user site licence £600.00 + VAT BUY NOW
Existing registered users of earlier versions of ProSteel - see chart on ProSteel product information page
All prices include P&P and updates issued during the 12 months from date of purchase.
BUY NOW: Order from our website and you won't have to wait: once your secure credit card payment has been processed you'll be emailed a link so you can download the full version. The manual will sent on to you shortly. Web sales are handled for us by Bluesnap Inc through their secured servers
Mail orders are handled for us by AM Resources Limited, PO Box 411, Twickenham, TW2 5UY. Purchase orders are accepted from quoted plc and public sector purchasers only. All other orders must be accompanied by a cheque or be prepaid via internet banking - see Order form (PDF) for details.
